Cabling Between PC and Controls

Hardware handshake is at all times the best solution to a perfect transmission. If you have the option to set the machine parameters to ‘DTR/RTS’, then do that. Because the response time is close to 0, this is perfect for drip-feeding. Otherwise you must use software handshake ‘Xon/Xoff’, this handshake is not as fast as the hardware handshake, but it works on 98% of all machines.

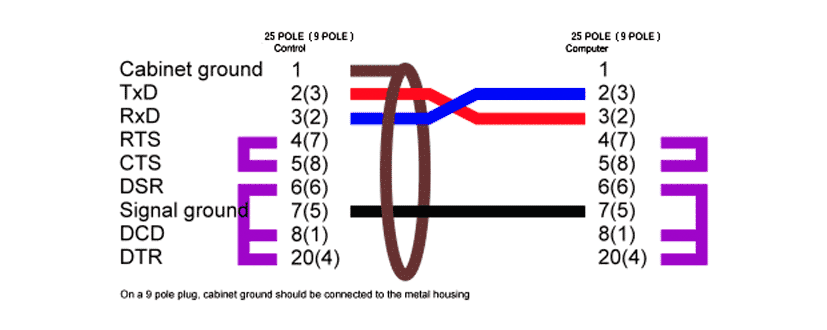

Standard RS-232 Cable
